As an exercise, since my reading group was discussing model checking this week, I implemented the classic model checker for CTL specifications from the 1986 paper

• Automatic Verification of Concurrent Systems Using Temporal Logic Specifications by EM Clarke, EM Emerson, AP Sistla.

The "efficient algorithm" presented in the paper is, upon reflection, merely a memoized traversal of the state machine, so I combined it with a modified version of

• Monadic Memoization Mixins by D Brown, WR Cook

which actually eliminated an auxilliary function from the algorithm, yielding an efficiently-executable 20-line Haskell specification of the meaning of CTL (which is probably clearer than my English prose explanation, and certainly more fun to play with).

This post is, as usual, literate Haskell. Load it up in GHCi, Haskell-mode, or compile it with ghc --make and try it out. Maybe you can convince my state space exploration not to terminate

> {-# LANGUAGE TypeOperators,ScopedTypeVariables,PatternSignatures #-}

> import qualified Data.Map as M
> import qualified Data.Set as S
> import Data.List
> import Control.Monad
> import Control.Monad.State hiding (fix)

Memoization Mixins

Here is the easy example from the Brown-Cook paper, before getting on to model checking.

To enable functional mixins, we write our functions using open recursion. Instead of a function of type a -> b we write one of type Gen (a -> b) and then later "tie the knot" with fix (reproduced here for reference)

> type Gen a = (a -> a)

> fix :: Gen a -> a
> fix f = f (fix f)

The classic example they start with is calculating the nth fibonacci number, but don't stop reading just because this example is simple! It is just to illustrate the technique.

> fib :: Int -> Int
> fib 0     = 0
> fib 1     = 1
> fib (n+2) = fib n + fib (n+1)

By the time you get to fib 30 it takes a dozen or seconds to return on my poor old computer. Rewrittin in open recursion as

> gFib :: Gen (Int -> Int)
> gFib recurse 0     = 0
> gFib recurse 1     = 1
> gFib recurse (n+2) = recurse n + recurse (n+1)

> fib' = fix gFib

This fib' has essentially the same performance, up to constant factors: slow.

To enable us to store the memoization table in something like a State, we parameterize over an underlying monad. A beautiful technique in its own right, if you ask me. I agree with the authors that open recursion and monadification are important and powerful enough to deserve language support; you probably will think gmFib below looks a bit crufty.

> gmFib :: Monad m => Gen (Int -> m Int)
> gmFib recurse 0     = return 0
> gmFib recurse 1     = return 1
> gmFib recurse (n+2) = do a <- recurse n
>                          b <- recurse (n+1)
>                          return (a + b)

And now we can mix in memoize

> type Memoized a b = State (M.Map a b)

> memoize :: Ord a => Gen (a -> Memoized a b b)
> memoize self x = do memo <- check x
>                     case memo of
>                       Just y  -> return y
>                       Nothing -> do y <- self x
>                                     store x y
>                                     return y

> check :: Ord a => a -> Memoized a b (Maybe b)
> check x = do memotable <- get
>              return (M.lookup x memotable)

> store :: Ord a => a -> b -> Memoized a b ()
> store x y = do memotable <- get
>                put (M.insert x y memotable)

Here's the final fib, which returns instantly up to at least 10000.

> fib'' n = evalState (fix (gmFib . memoize) n) M.empty

Computation Tree Logic (CTL)

The language for which Clarke et al give a graph-based algorithm is called CTL; nowadays people are interested in a bunch of variants like CTL* and ACTL. I'm not a model-checking researcher so I don't really know the subtleties of their differences. CTL is a logic for specifying certain restricted kinds of predicates over the possible traces of a state machine, for today a finite state machine.

Let's just look at the Haskell definition:

> data CTL p = TT | FF
>            | Atomic p
>            | Not (CTL p)
>            | And (CTL p) (CTL p)
>            | AllSucc  (CTL p)
>            | ExSucc   (CTL p)
>            | AllUntil (CTL p) (CTL p)
>            | ExUntil  (CTL p) (CTL p)
>              deriving (Eq,Ord)

Some of these are simply your usual logic

• TT holds of any state
• FF never holds
• Atomic p is some atomic proposition over a state, like inequality over program variables, etc.
• Not and And have their expected meanings

The successor constructions let you talk about "the next" state:

• AllSucc f (respectively ExSucc) holds of a state s when the formula f holds for all (respectively some) successor states.

The interesting ones though, are "Always Until" and "Exists Until":

• AllUntil f1 f2 holds of a state s when for all prefixes of any trace starting at s you eventually reach a state satisfying f2, and everywhere along the way f1 holds.
• ExUntil is the existential version of that.

We can then define some more predicates like "forever in the future" and "eventually"

> allFuture f = AllUntil TT f
> existsFuture f = ExUntil TT f

> allGlobal f = Not(existsFuture(Not f))
> existsGlobal f = Not(allFuture(Not f))

Now, to apply a formula to a state machine, first I need the state machine. I'll just represent it by its successor function.

> type Succ st = st -> [st]

And we need some interpretation of atomic formulas as predicates over states

> type Interp p st = p -> st -> Bool

And since I'm using a monadified form of computation, I will lift a bunch of operations into monads to make everything readable.

> andThen,orElse :: Monad m => m Bool -> m Bool -> m Bool
> andThen = liftM2 (&&)
> orElse  =  liftM2 (||)

> notM :: Monad m => m Bool -> m Bool
> notM = liftM not

> anyM,allM :: Monad m => (s -> m Bool) -> [s] -> m Bool
> allM f = liftM and . mapM f
> anyM f = liftM or  . mapM f

The Model-Checking Algorithm

In the Clarke et al paper, the algorithm is expressed by induction on the formula f you want to check: First, label your state-space graph with all the atomic formula that hold at each state. Then, label with each the compound formula of height two that holds. Etc, etc, you are guaranteed that the graph is already labeled with each subformula by the time it becomes necessary.

Like dynamic programming, this is simply a complicated way of expressing memoization. In fact, they even use a depth-first search helper function that is completely eliminated by expressing it as a memoized function. This code is considerably shorter and, I think, clearer than the pseudocode in the paper, modulo the overhead of "mixing in" and "tying the knot".

Today we have fancy algorithms involving BDDs and abstraction, so I'm not claiming anything useful except pedagogically. I do wonder, though, if this code gains something through laziness. It certainly traverses the state space fewer times (but I'm sure an implementation of their algorithm would do similar optimizations).

> checkCTL :: forall p st . (Ord p, Ord st) =>
>                           Interp p st -> Succ st -> st -> CTL p -> Bool
> checkCTL interp succ init f =
>    evalState (fix (gCheckCTL . cyclicMemoize2 False) f init) M.empty
>  where
>    gCheckCTL :: Monad m => Gen (CTL p -> st -> m Bool)
>    gCheckCTL recurse f s = checkFormula f
>      where checkFormula TT           = return True
>            checkFormula FF           = return False
>            checkFormula (Atomic p)   = return (interp p s)
>            checkFormula (Not f1)     = notM (recurse f1 s)
>            checkFormula (And f1 f2)  = recurse f1 s `andThen` recurse f2 s
>            checkFormula (AllSucc f1) = allM (recurse f1) (succ s)
>            checkFormula (ExSucc f1)  = anyM (recurse f1) (succ s)

>            checkFormula (AllUntil f1 f2) = recurse f2 s `orElse`
>                            (recurse f1 s `andThen` allM (recurse f) (succ s))

>            checkFormula (ExUntil f1 f2)  = recurse f2 s `orElse`
>                            (recurse f1 s `andThen` anyM (recurse f) (succ s))

You may also notice that I cheated a little, perhaps. I have used cyclicMemoize2 instead of memoize:

> cyclicMemoize2 :: (Ord a, Ord b) => c -> Gen (a -> b -> Memoized (a,b) c c)
> cyclicMemoize2 backEdge self x y = do memo <- check (x,y)
>                                       case memo of
>                                          Just z  -> return z
>                                          Nothing -> do store (x,y) backEdge
>                                                        z <- self x y
>                                                        store (x,y) z
>                                                        return z

One reason is simply that I need a curry/uncurry wrapper for my two argument monadified function. The deeper thing is that cyclicMemoize2 False inserts a fake memoization entry while a computation is progressing. If there is ever a "back edge" in the search, it will return this dummy entry. For CTL, the auxilliary depth-first search used in the paper for AllUntil returns False in these cases, so I seed the memo table accordingly. This is because by the time you have recursed around a cycle, that means that the f2 you are searching for did not occur on the cycle, so it never will.

To play with it, I've only made a couple of examples involving stop lights (of occasionally curious colors). I'd love more, and you'll undoubtedly find bugs if you actually run something significant.

> ex1interp p s = (p == s)

> ex1succ "Red"    = ["Green"]
> ex1succ "Green"  = ["Yellow"]
> ex1succ "Yellow" = ["Red"]

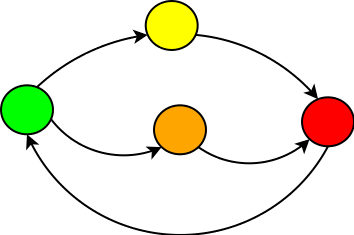

> ex2succ "Red"    = ["Green"]
> ex2succ "Green"  = ["Yellow", "Orange"]
> ex2succ "Orange" = ["Red"]
> ex2succ "Yellow" = ["Red"]

But it looks kind of OK,

*Main> let ch2 = checkCTL ex1interp ex2succ
*Main> let ch1 = checkCTL ex1interp ex1succ
*Main> ch1 "Red" (existsFuture (Atomic "Red"))
True
*Main> ch1 "Red" (existsFuture (Atomic "Blue"))
False
*Main> ch2 "Green" (ExUntil TT (Atomic "Red"))
True
*Main> ch2 "Green" (ExUntil (Atomic "Green") (Atomic "Orange"))
True
*Main> ch1 "Green" (Not (AllUntil (Not (Atomic "Yellow")) (Atomic "Red")))
True
*Main> ch1 "Green" (Not (ExUntil (Not (Atomic "Yellow")) (Atomic "Red")))
True
*Main> ch2 "Green" (Not (ExUntil (Not (Atomic "Yellow")) (Atomic "Red")))
False

Quite fun!
