I'm reading the very fun Measure, Topology, and Fractal Geometry by GA Edgar, and thought I'd hack up some of the examples in Haskell. So this post implements cursor graphics in OpenGL in (I think) DSEL style, demonstrating the StateT and Writer monad gadgets from the standard library and a cool "novel representation of lists" due to R Hughes. On the fractal side, the examples will hopefully convince you that fractals are not just cute pictures, but extremely important illustrations that the real numbers are weird.

As usual, you can save this post to Fractals.lhs and compile it with ghc --make Fractals

It seems that a couple of people have gone before me making actually useful fractal packages (the packages are more specifically for "Iterated Function Systems" and "L-systems", respectively) or prettier pictures in their blog posts.

• IFS (and related blog entry)
• Nymphaea
• Fractal-hs

But I didn't let that stop me from doing a little hacking. This article is hopefully more entertaining to read than a library API. So let's get started!

> import Data.IORef
> import Data.List
> import Graphics.Rendering.OpenGL as GL
> import Graphics.UI.Gtk as Gtk
> import Graphics.UI.Gtk.OpenGL
> import Control.Monad.Writer
> import Control.Monad.State as S

The state of the cursor is a position, direction, and whether the ink is activated (so I can move it about without drawing lines everywhere). The neutral state is at the origin, pointed due east, with the ink on.

> type Point2 = Vertex2 GLfloat
>
> data CursorState = TS { pos :: Point2
>                       , dir :: Float
>                       , ink :: Bool }
>
> neutral = TS { pos = Vertex2 0 0
>              , dir = 0
>              , ink = True }

Now rather than define the syntax of cursor commands and make functions for creating and consuming it, I want to embed the commands into Haskell. This is quite easy, of course.

> type Instruction = CursorState -> CursorState
>
> leftI    angle s = s { dir = dir s + angle }
> rightI   angle s = s { dir = dir s - angle }
> penI     b     s = s { ink = b }
> forwardI dist  s = s { pos = move (pos s) dist (dir s) }
>     where move (Vertex2 x y) dist dir = Vertex2 (x + dist * cos dir)
>                                                 (y + dist * sin dir)

A first approach to the semantics is that sequence of commands should have the state threaded through it. The type of a program would be State CursorState () (the unit is because there is no return value). I would then get the final state of prog starting from the neutral state with execState program neutral.

But I don't actually care about the final state; I want to evaluate this program only for its side effects: Whenever I run a forward command, it should leave a line segment if ink was enabled. This situation is just what the Writer monad is for. When I move from s1 to s2, I call tell [(s1,s2)] in order to "log" this line segment.

I actually need to carry the state and the log around, so how do I combine these monads? Well, there's a huge trail of literature to follow on that! If you are interested, Composing Monads Using Coproducts by C Lüth, N Ghani has a canonical way, and lots of references. But for today, the officially sanctioned approach is to use a monad transformer; in many practical cases this coincides with the coproduct.

So a first attempt at the type of a cursor program would be:

type CursorProgram = StateT CursorState (Writer [(Point2,Point2)]) ()

What is all this? Well, CursorState is the state I want to pass around, and Writer [(Point2, Point2)] is the internal monad. The type is large, but it says a lot! The only thing I have to watch for is to use lift . tell instead of tell because I need to apply it to the inner Writer.

But you shouldn't use list append for a log in real life. In the above hypothetical definition, the log is accumulated via the (++) monoid, so every time computations are combined with >>= the writer monad will invoke a potentially-costly list append operation. The log will always grow from its tail, so I could build the list backwards and it would be efficient, but there is a cooler trick (Kefer points out in the comments that the dlist package provides a usable library for this representation, also called "difference lists"), from this paper:

• A novel representation of lists and its application to the function "reverse". RJM Hughes. Information Processing Letters. 1986

In a nutshell: lists and partial applications of (++) are in bijection, so I can swap them. Here's the definition, the bijection, and the monoid instance. "List" concatenation is now function composition, and the empty list is the identity function. What a pretty monoid morphism!

> newtype List a = L ([a] -> [a])
> instance Monoid (List a) where
>     mappend (L x) (L y) = L (x . y)
>     mempty = L id

> inject :: [a] -> List a
> inject l = L (l++)

> recover :: List a -> [a]
> recover (L list) = list []

> singleton :: a -> List a
> singleton x = L (x:)

Notice how if I append a bunch of singletons, it is the same number of applications of : as if I had built the list backwards. Then when I recover the list it costs O(n), the same as efficient reversal, so the two are equally good strategies in this case. It would be best to make a newtype for backwards lists with its own monoid instance anyhow, so the programming overhead is also the same.

Now I just wrap all the instructions to operate on this more-complicated state, adding logging to forward.

> type CursorProgram = StateT CursorState (Writer (List (Point2,Point2))) ()
>
> liftI :: (CursorState -> CursorState) -> CursorProgram
> liftI instr = S.put . instr =<< S.get

> forward, left, right :: Float -> CursorProgram
> left    angle = liftI (leftI angle)
> right   angle = liftI (rightI angle)
> forward dist  = do s <- S.get
>                    liftI (forwardI dist)
>                    s' <- S.get
>                    when (ink s) $ lift $ tell $ singleton (pos s, pos s')

> pen :: Bool -> CursorProgram
> pen b = liftI (penI b)

> run :: CursorProgram -> CursorState -> [(Point2,Point2)]
> run prog state = recover $ execWriter $ execStateT prog state

That's not so bad, is it? So now let's get on to some drawing.

Possibly the simplest fractal that already can blow your mind is the Cantor Set.

> cantor :: Int -> CursorProgram
> cantor depth = cantor' depth 1.0
>   where cantor' 0 size = forward size
>         cantor' n size = do cantor' (n-1) (size/3)
>                             pen False
>                             forward (size/3)
>                             pen True
>                             cantor' (n-1) (size/3)

Viewing that won't be very interesting; it is just an excuse to talk about it. But Wikipedia has a nice image:

Take the segment and remove the center third of it, keeping the endpoints intact. Now remove the center third of each of those segments, and again, and again. Taking the intersection of all of these sets (i.e. the limit) gives the Cantor Set.

So what does it look like? Well, it isn't empty, since every point that is ever an endpoint sticks around forever. But those aren't the only points: Convince yourself that is in the set. I'm pretty sure this can be phrased as a coinductive proof but for now the next paragraph will give you another approach.

The classic way of understanding the Cantor Set is to use ternary digits. See if you can convince yourself that the cantor set contains every real number that doesn't require a 1 in its ternary expansion (hint: 0.0222222… = 0.1 so 0.1 doesn't require a 1 in its ternary expansion)

So any number made of a possibly-infinite string of 0s and 2s is in there. Sound familiar? Well, if we use "1″ instead of "2″ then we are talking about all possibly-infinite binary strings, which a programmer should intuitively see is all real numbers in (…Cauchy sequences, mumble, mumble…). So the Cantor Set is, in fact, uncountable!

Next, how about the Koch curve?

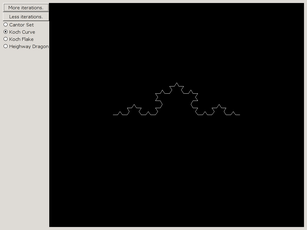

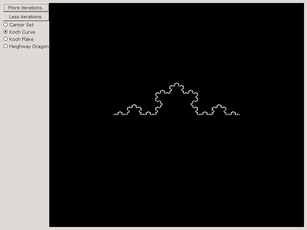

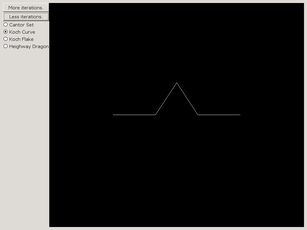

> koch :: Int -> CursorProgram
> koch depth = koch' depth 1.0
>   where koch' 0 size = forward size
>         koch' n size = do koch' (n-1) (size/3)
>                           left (pi/3)
>                           koch' (n-1) (size/3)
>                           right (pi * 2/3)
>                           koch' (n-1) (size/3)
>                           left (pi/3)
>                           koch' (n-1) (size/3)

This curve (in the limit) is continuous everywhere but differentiable nowhere.

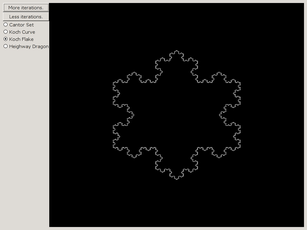

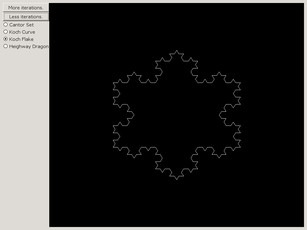

But what is more fun is when you stick three of them end-to-end, for Koch's Snowflake.

> kochFlake :: Int -> CursorProgram
> kochFlake depth = do -- lining up
>                      pen False
>                      forward 1.0
>                      right (pi/2)
>                      forward (1 / (2*sqrt(3)))
>                      right (pi/2)
>                      pen True
>                      -- draw in a triangle shape
>                      koch depth
>                      right (2*pi/3)
>                      koch depth
>                      right (2*pi/3)
>                      koch depth

Here, the area is finite, and yet the boundary is infinite, which is normal for fractal-boundaried regions.

Finally, there's Heighwey's dragon.

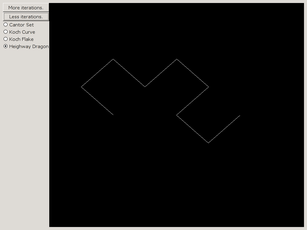

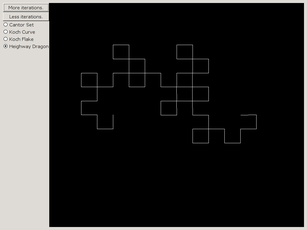

> heighway :: Int -> CursorProgram
> heighway depth = heighway' depth 1.0 1.0
>   where heighway' 0 size parity = forward size
>         heighway' n size parity = do left (parity * pi / 4)
>                                      heighway' (n-1) (size / sqrt 2) 1
>                                      right (parity * pi / 2)
>                                      heighway' (n-1) (size / sqrt 2) (-1)
>                                      left (parity * pi / 4)

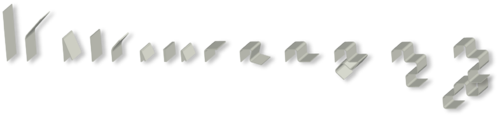

This is what you get if you just keep folding a piece of paper in half in the same direction, then unfold it and set every fold to a right angle. Rather than recite facts from Wikipedia, I'll highly recommend the original article, as it is of rare quality. In fact, all of the articles about these curves were so unexpectedly satisfying that I ended up not feeling the need to write much.

What all of the above fractal curves except the Koch Snowflake have in common is self-similarity. The cantor set is essentially identical to each of its left and right hand sides, i.e. it is identical to the union of two scaled-down copies of itself, as the cursor-graphics code makes obvious. I said I wouldn't talk about it, so I'll just mention that if you write this as then and are the functions in "iterated function systems. I highly recommend a googling, or better yet, the book which prompted this post.

Below is the actual nitty-gritty OpenGL, Gtk, and IO code that plugs it together.

> render :: CursorProgram -> IO ()
> render fractal = do
>   clear [ColorBuffer]
>   loadIdentity
>   color3f (Color3 1 1 1)
>   translate3f $ Vector3 (-0.5) 0 0
>   renderPrimitive Lines $ mapM_ vertex $ combine $ run fractal neutral
>   where color3f = color :: Color3 GLfloat -> IO ()
>         translate3f = translate :: Vector3 GLfloat -> IO ()
>         scale3f = scale :: GLfloat -> GLfloat -> GLfloat -> IO ()
>         combine = concatMap (\(start,end) -> [start,end])

> draw :: GLDrawingArea -> IO () -> IO ()
> draw canvas render = do
>   -- This is all Gtk code, managing the internal structures
>   glContext <- glDrawingAreaGetGLContext canvas
>   glWin <- glDrawingAreaGetGLWindow canvas
>   (w,h) <- glDrawableGetSize glWin
>
>   glDrawableGLBegin glWin glContext
>   -- Scale up and use the whole canvas
>   (pos, _) <- GL.get viewport
>   viewport $= (pos, Size (fromIntegral w) (fromIntegral h))
>   render
>   GL.flush -- except this
>   glDrawableSwapBuffers glWin
>   glDrawableGLEnd glWin

> main = do
>   initGUI
>   glConfig <- glConfigNew [GLModeRGBA, GLModeDouble]
>   initGL
>
>   depthRef <- newIORef 0
>   fractalRef <- newIORef cantor
>
>   canvas  <- glDrawingAreaNew glConfig
>   let redraw = do depth <- readIORef depthRef
>                   fractal <- readIORef fractalRef
>                   draw canvas (render (fractal depth))
>
>   onExpose canvas (\_ -> do { redraw; return True } )
>
>   buttonBox <- vBoxNew False 0
>
>   incrButton <- buttonNew
>   Gtk.set incrButton [ buttonLabel := "More iterations." ]
>   onClicked incrButton (do oldval <- readIORef depthRef
>                            putStrLn $ show (oldval + 1) ++ " iterations!"
>                            writeIORef depthRef (oldval + 1)
>                            redraw)
>
>   decrButton <- buttonNew
>   Gtk.set decrButton [ buttonLabel := "Less iterations." ]
>   onClicked decrButton (do oldval <- readIORef depthRef
>                            putStrLn $ show (max 0 (oldval - 1)) ++ " iterations!"
>                            writeIORef depthRef (max 0 (oldval - 1))
>                            redraw)
>
>   boxPackStart buttonBox incrButton PackNatural 0
>   boxPackStart buttonBox decrButton PackNatural 0
>
>   dummy <- radioButtonNew -- All buttons join this group
>   mapM_ (\(fun,label) -> do button <- radioButtonNewWithLabelFromWidget dummy label
>                             onToggled button (do me <- toggleButtonGetActive button
>                                                  when me $ do writeIORef fractalRef fun
>                                                  redraw)
>                             boxPackStart buttonBox button PackNatural 0)
>             [ (cantor, "Cantor Set")
>             , (koch, "Koch Curve")
>             , (kochFlake, "Koch Flake")
>             , (heighway, "Heighway Dragon") ]
>
>   canvasBox <- hBoxNew False 0
>   boxPackStart canvasBox buttonBox PackNatural 0
>   boxPackStart canvasBox canvas PackGrow 0
>
>   window <- windowNew
>   Gtk.set window [ containerBorderWidth := 10,
>                    containerChild := canvasBox ]
>   onDestroy window mainQuit
>
>   widgetShowAll window
>   mainGUI
